Product Series
Handheld Laser Welders for Different Workshop Needs
Master Product Specification Sheet

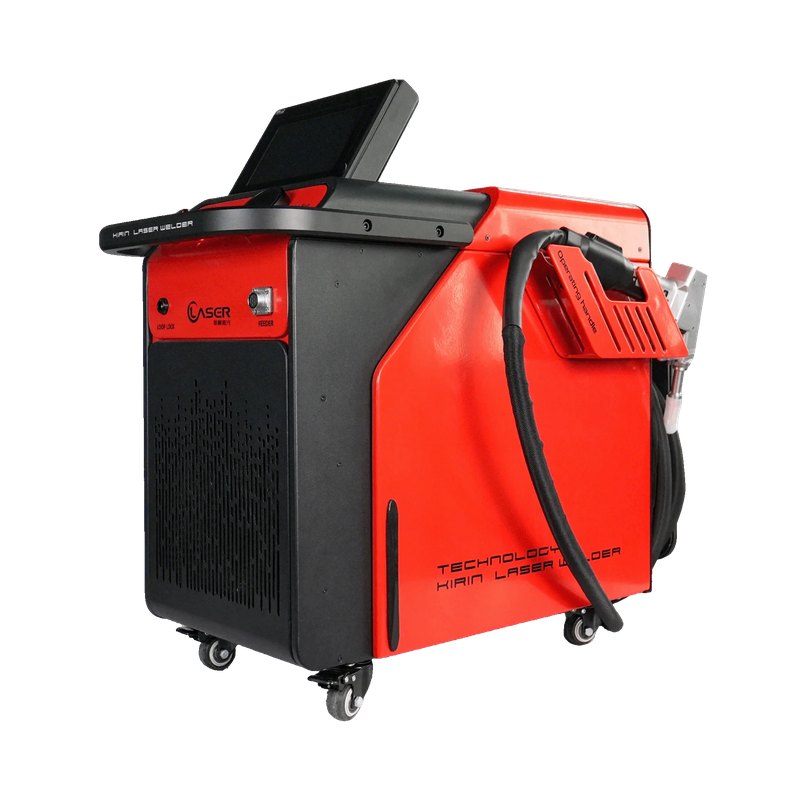

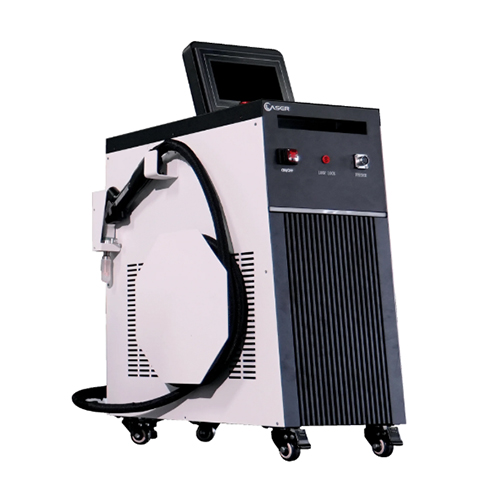

Air-Cooled Fiber Laser Handheld Welding Machine
|
Item |
Details |
|---|---|
|
Rated Output Power |
350W-2600W |
|
Fiber Optic Interface Type |
MiniQBH |
|
Operating Ambient Temperature |
-40°C-45°C |
|
Fiber Core Diameter |
14–50μm |
|
Output Fiber Length |
5-10m |
|
Wire Feed Range |
Single 0.8–1.6 / Double 1.2–1.6 |
|
Welding Depth |
1.5-6mm |
|
Cooling Method |
Air-Cooled |

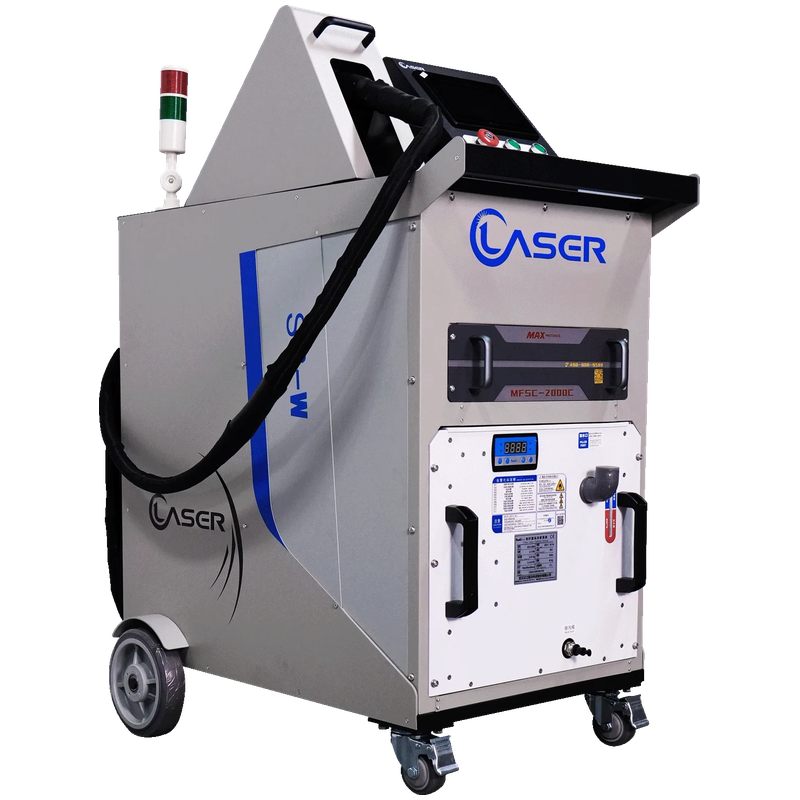

Water-Cooled Fiber Laser Handheld Welding Machine
|
Item |
Details |
|---|---|
|
Rated Output Power |
1500W-3000W |
|
Fiber Optic Interface Type |
QBH/RD |
|
Operating Mode |
Consecutive |
|
Fiber Core Diameter |
50μm |
|
Output Fiber Length |
10m |
|
Welding Depth |
5-7mm |
|
Power Requirements |
AC220-380V 50/60HZ |
|
Cooling Method |
Water-Cooled |
Spare Parts and Consumables
|
Item |
Details |
|---|---|
|
Package Contents |
Protective Lenses, Nozzles, Welding Gun Consumables, Wire Feeding Accessories, etc. |
|
Configuration |
Tailored to machine model and welding application |
|
Protective Lenses |
Optical-grade replacement lenses for welding headprotection |
|
Nozzles |
Copper alloy nozzles in multiple sizes for various weldprofiles |
|
Welding Gun Consumables |
Tips, ceramics, and contact parts for standard welding guns |
|
Wire Feeding Accessories |
Wire guides, rollers, and drive components |
|
Packaging |
LNX branded storage bag for organized transport and configuration and usage intensity |
|
Customization |
Package contents adjusted based on your machine |
Built for Real Metal Welding Applications
Our handheld laser welding machines are selected for workshops that need cleaner welds, faster operation, and easier setup compared with many traditional welding processes.
Sheet Metal
Fabrication
Stainless Steel
Fabrication
Carbon Steel
Welding
Aluminum
Welding
Repair and Maintenance Workshops
Automotive and Machinery
Repair
Kitchen Equipment
Manufacturing
Metal
Furniture
Door and Window
Fabrication
Small Workshop
Production
Videos
Welding demo videos are available upon request. Please contact us with your material and thickness requirements.
Air-Cooled vs Water-Cooled Laser Welders
For many first-time buyers, a 1600W air-cooled handheld laser welder is a practical starting option. For thicker materials or longer continuous welding, a 2000W water-cooled configuration may be more suitable.
|
Item |
Air-Cooled Laser Welder |
Water-Cooled Laser Welder |
|---|---|---|
|
Main Advantage |
Compact and easier to move |
Better for longer continuous operation |
|
Typical Applications |
Light to medium-duty welding, Easy to dissipate heat |
Higher workload and thicker materials, More stable |
|
Maintenance |
Simpler, Plug and play |
Requires water system maintenance |
|
Portability |
Lighter weight more portable |
Heavier weight better stability |
|
Suitable Users |
Small workshops, repair shops, light-to-medium fabrication |
Higher workload workshops and thicker materials |
|
Selection Advice |
Good starting option for many small shops |
Consider for heavy-duty or long working hours |
Why choose LNX Equipment
We are not trying to offer every type of industrial equipment. Our current focus is on providing practical handheld laser welding machines to overseas buyers, along with clear information and timely communication.
- Focused on Handheld Laser Welding
- Application-Based Recommendation
- Factory Testing Coordination
- English Documents and Communication
- Spare Parts Support
- Clear Pre-Sales and After-Sales Process
- WhatsApp-Based Communication
- Quality control and configuration inspection
Request a Handheld Fiber Laser Welder Specifications and Quote
Not sure which model fits? Send us your material and thickness—we'll recommend a suitable configuration.
Please provide your material, thickness range, current welding method, and destination country. This helps us recommend a suitable handheld laser welding machine.
FAQ
Our main products are handheld fiber laser welding machines designed for metal fabrication, repair, and manufacturing applications. LNX Equipment offers portable air-cooled and water-cooled laser welders in different power configurations, helping fabricators weld stainless steel, carbon steel, aluminum, galvanized steel, and other common metals with high welding speed and consistent results.
Choose an air-cooled laser welder when portability, simple operation, and lower maintenance are the priorities, especially for lighter-duty welding applications. Choose a water-cooled machine when higher continuous power, longer operating periods, or demanding production environments require more effective heat management. The right choice depends on laser power, material thickness, workload, and operating conditions.
Our handheld fiber laser welding machines can be used for a wide range of metal materials, including stainless steel, carbon steel, mild steel, aluminum, galvanized steel, and some copper applications, depending on laser power and material thickness. Welding performance depends on material type, thickness, joint design, surface condition, wire selection, and the machine configuration.
Yes. We can provide welding test videos to help customers evaluate machine performance before purchasing. Depending on the application, videos can demonstrate welding results on different metals, material thicknesses, joint types, and wire-feeding conditions. Customers can also share their material, thickness, and welding requirements so we can recommend a suitable machine configuration and testing method.
Yes. Certification and compliance documents can be provided according to the specific machine configuration and destination market. For European customers, CE-related documentation is available for applicable models. Before placing an order, we recommend confirming the required documents, applicable directives, electrical specifications, and labeling requirements so the selected laser welding machine meets the buyer's import and compliance needs.
Yes. English product materials are available for international customers, including product specifications, user manuals, operation instructions, and other technical information where applicable. We can also provide English photos, videos, configuration details, and basic application guidance to support distributors, importers, and end users with product evaluation, sales communication, installation, operation, and after-sales service.
Common spare parts and consumables for handheld laser welding machines may include protective lenses, copper nozzles, ceramic rings, sealing components, and other machine-specific consumables. The recommended spare-parts package depends on the laser source, welding head, power configuration, and expected workload. We can help buyers prepare a practical spare-parts list before shipment to reduce potential downtime.
Yes. Remote installation and operating support can be provided for customers who need assistance after receiving the machine. Depending on the machine configuration, support may include unpacking guidance, basic machine setup, parameter configuration, software operation, welding-head adjustment, and troubleshooting. We recommend confirming the machine model, control system, and customer's technical requirements before delivery to prepare the appropriate remote support.
